Product Overview
SPECIFICATIONS
Brand Name: ANYSECU
Battery Capacity(mAh): -
Origin: Mainland China
Waterproof / Water-Resistant: IP55
Maximum Range: 3km-5km
Model Number: A-CB-40M
Is_Display: Yes
Walkie Talkie Type: Car
Output Power(w): 3w-5w
Material: Plastic and metal
Storage Channel: 9/19
Frequency Range: 25.615--30.105MHz
Dimensions: 109x109x28mm
Certification: CE

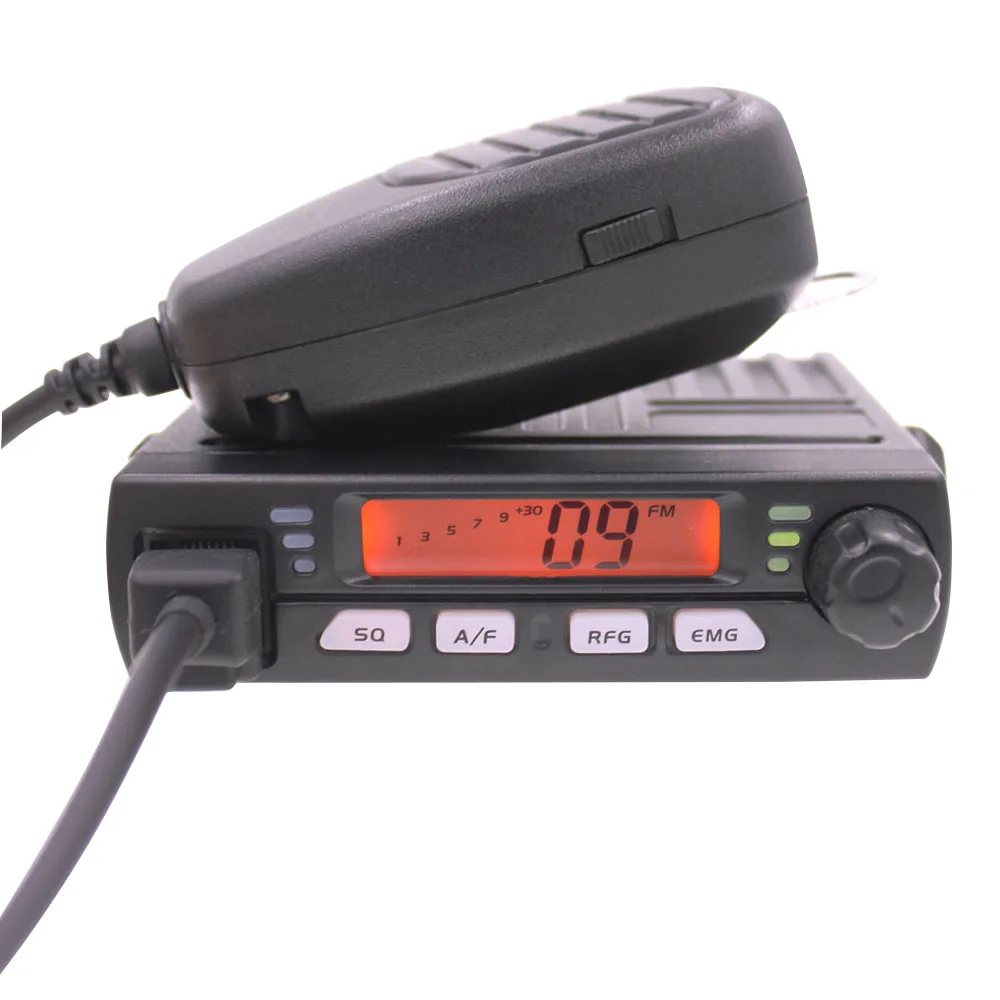

New ANYSECU Mini Mobie Radio CB-40M 25.615-30.105MHz 10M Amateur 8W AM/FM Citizen Band Radio AR-925Â
Note:this cb radio CB-40M can't program
CB-40M CB Radio Main features:
*25.615--30.105MHzÂ
*Mini and compact
* AM/FM mode switchable
* 9/19 emergency channel
* 10groups of channel for choose
* squelch
* ASQ control
* RF gain control
* keypad lock
* scan function
* High low power
* Reset function
* 40Ch fixed Can not program
CB-40M CB Radio features:
Specification | ||
Brand | Anysecu | |
Model | CB-40M | |
Modulation Mode | AM/FM | |
Frequency Range | 25.615--30.105MHz | |
Emergency channel | 9/19 | |
Frequency Tolerance | ±5.0ppm | |
Input Voltage | 13.2 V | |
Dimensions | 109x109x28mm | |
Weight | 310g with power cable | |
Frequency Control | PLL Synthesizer | |
Operating Temperature Range | -20℃ - +50℃ | |
Current Drain | Transmit | 2A MAX |
Receive | Squelched 0.3A | |
VOL Max | 0.8A | |

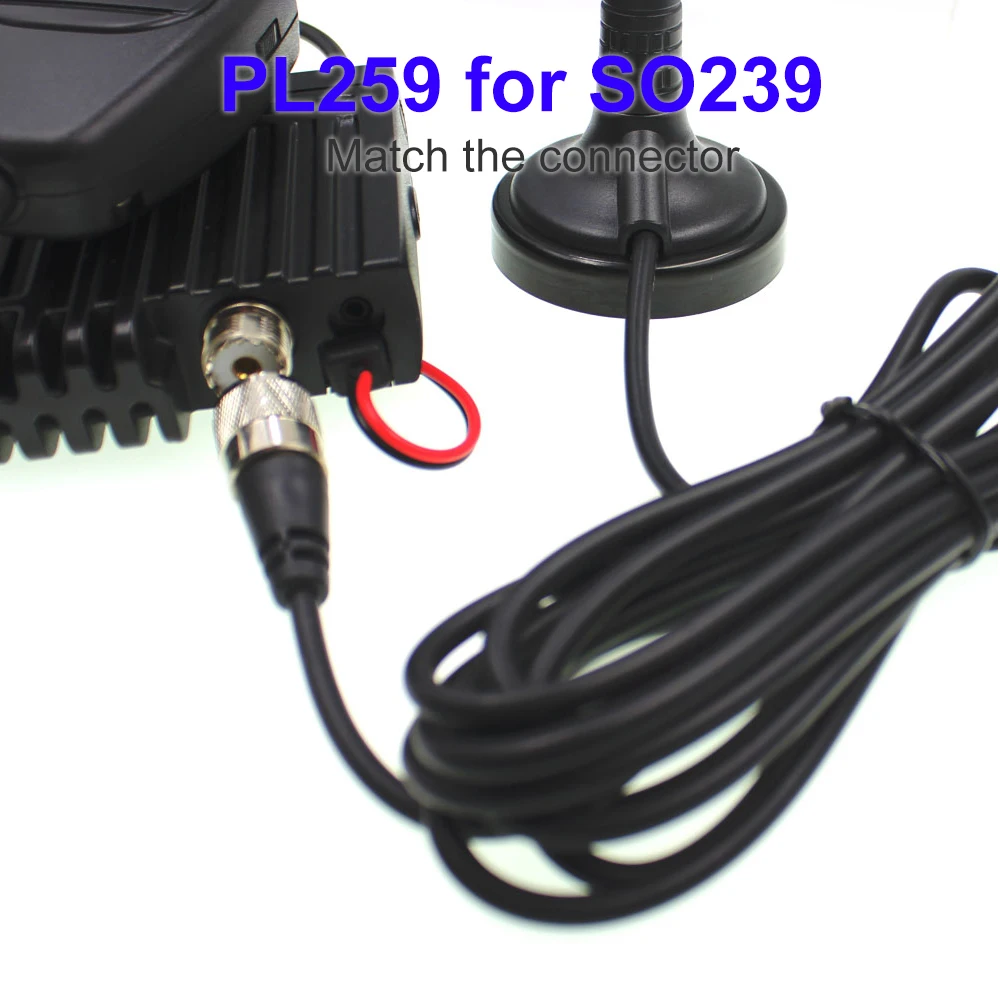

Antenna Connector | UHF,S0239,M | |
Transmitter | ||
Power Output | L4/H8Watts FM/AM | |
Transmission interference | inferior to 4nW(-54dBm) | |
Frequency Response | 300-3000Hz | |
Modulated signal distortion | inferior to 5% | |
Output Impedance | 50 ohms | |
Receiver | ||
Sensitivity | Less than luV for 10dB (S+N)/N | |
Image Rejection | 70dB | |
Adjacent Channel Rejection | 60dB | |
IF Frequencies | 1st 10.695MHz | |
2nd 455KHz | ||
Automatic Gain Control(AGC) | Less than 10dB change in audio | |
Output for inputs from 10 to 50000uV | ||
Squelch | less than luv | |
Audio Output Power | 1 Watts | |
Frequency Response | 300-3000Hz | |
