Product Overview
SPECIFICATIONS
Brand Name: SZBOX
Memory Capacity: 16GB
Hard Drive Capacity: 512GB
Model Number: SZBOX S58U
Hign-concerned Chemical: none
Processor Model: AMD Ryzen 7 5825U/5800U 8Cores 16Threads 2.0GHz Up to 4.4GHz
Use: Multimedia
Origin: Mainland China
Type: Mini Desktop
Processor Main Frequency: AMD Radeon Graphics, (up to 2000MHz)
Graphics Card Type: Integrated Card
Certification: CE
Processor Brand: AMD
Type: MINI PC
Hardware Configuration | ||
Items | Details | Descriptions |
Product Form | Form | Mini PC |
Material | Aluminium alloy | |
Dimensions | 114*106*37.5mm -- 0.37Kg | |
Package size | 159*159*93mm -- 0.95kg | |
CPU | Type | AMD Ryzenâ„¢ 7 5825U/5800U 8Cores 16Threads |
GPU | Integrated | AMD Radeonâ„¢ Graphics, (up to 2000MHz) |
RAM | Built-in | DDR4,SO-DIMM*2,up to 64GB |
Storage | SATA/PCIE SSD | M.2 *2 (ONE 2242,ONE 2280) |
Ethernet | Built-in | RTL8111G, RJ45 port, 1000M/100M/10M |
Wi-Fi | Built-in | RTL8852, BT5.2,WiFi6 802.11ac/a/b/g/n |
Bluetooth | RTL8852, BT5.2 | |

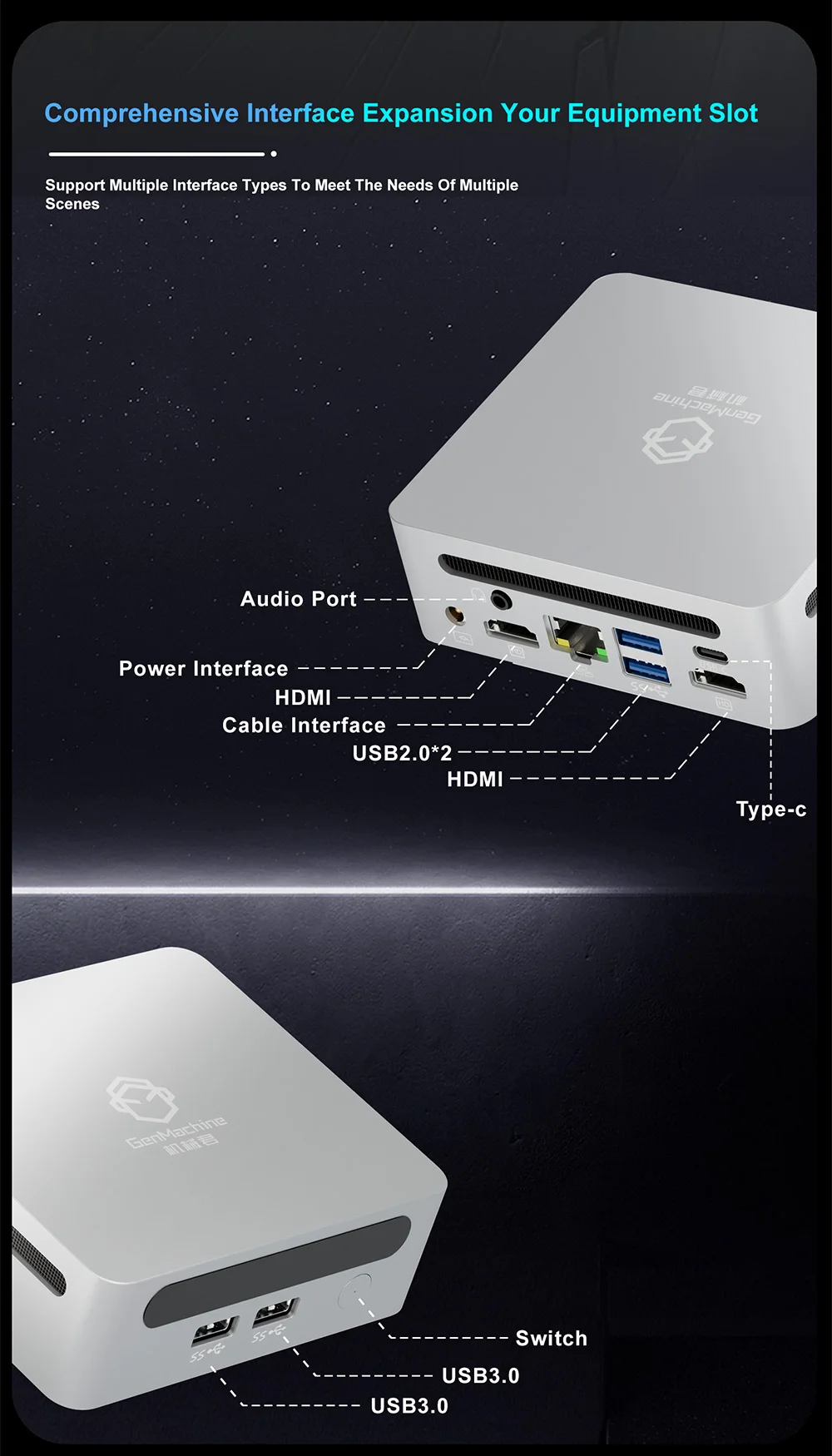

Ports | ||
Items | Details | Descriptions |
LED indicator | Power/Lan | Power(White)/Lan(Green/Orange) |
Button | Physical buttons | Power button |
USB Port | Data transmit | USB3.0*2Â TYPE-C *1Â USB2.0 *2 |
Ethernet | Built-in | RJ45 port*1, 1000M/100M/10M |

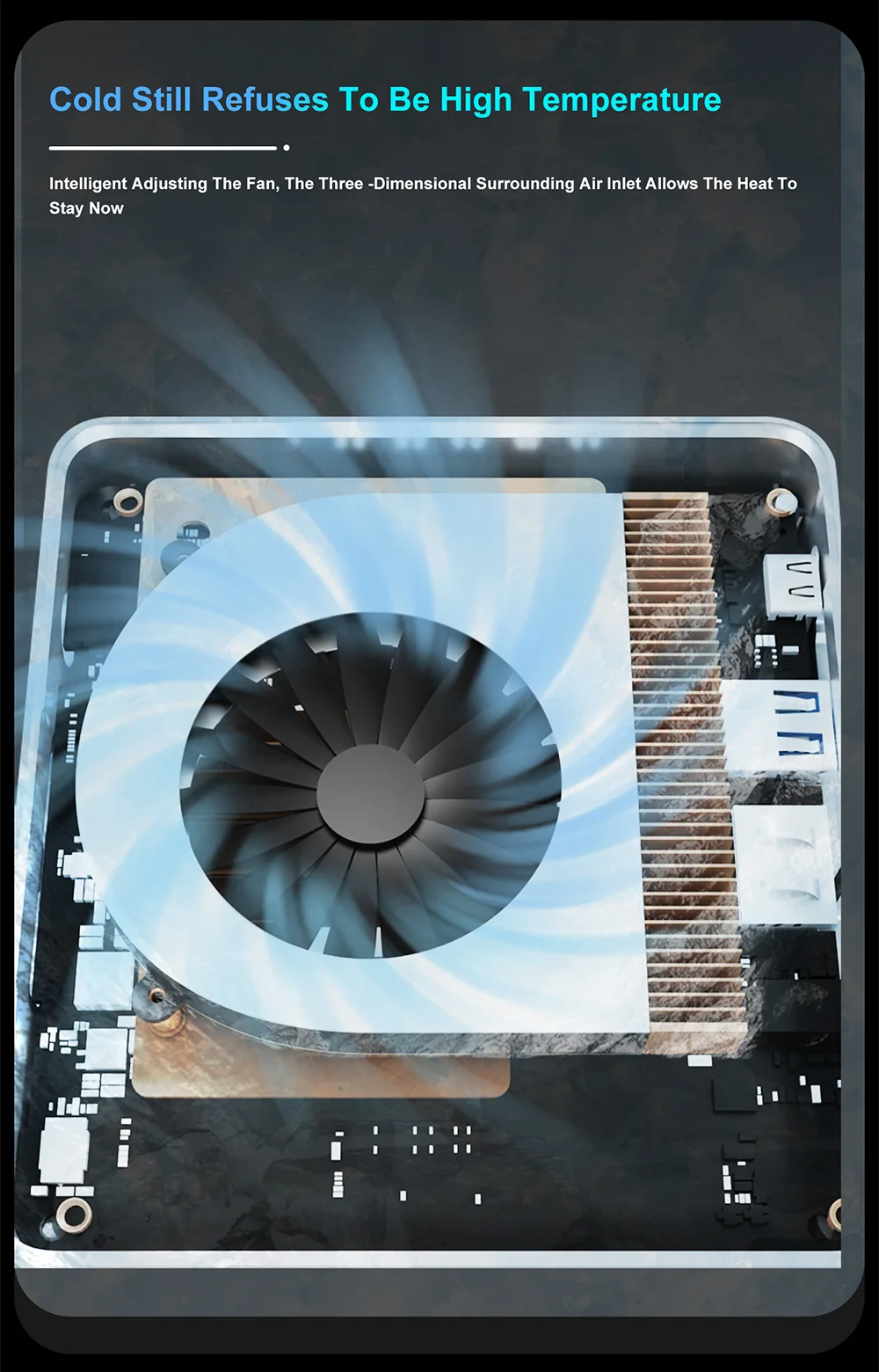

Fan | Fan | Support |
Earphone Jack | Audio output | ∮3.5mm,CTIA |
HD | HD Video output | HD v2.0*2 |
Adapter | Power input | DC IN, 19V/3.42A |
System | ||
Items | Details | Descriptions |
OS | Windows 10 /Windows 11 | |
Language | multi-language | |
